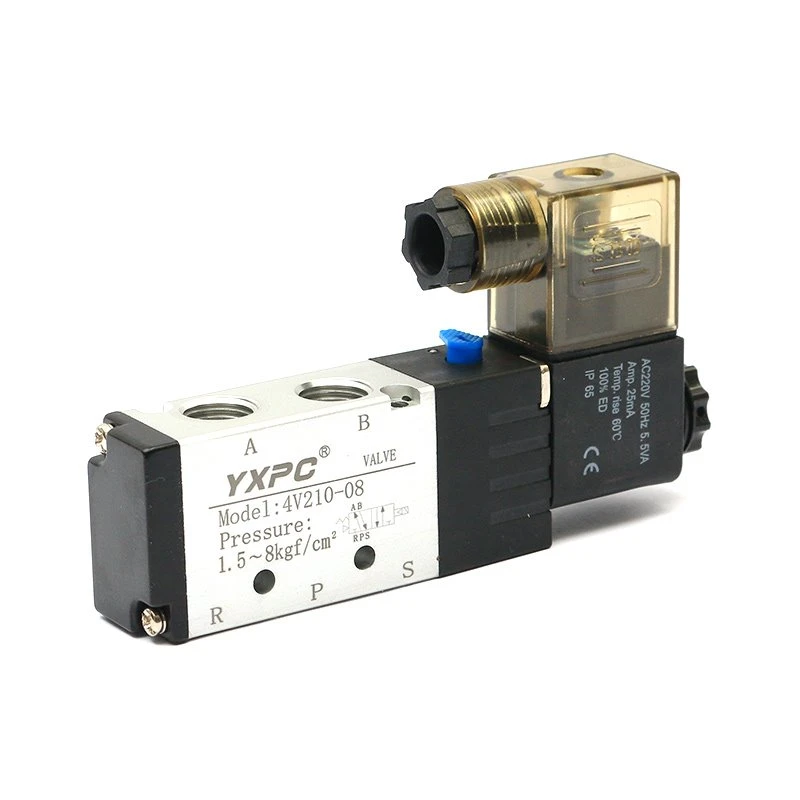

5 txoj kev pneumatic solenoid valve
4V200 Series
Chaw nres nkoj loj: G1 / 4, NPT1 / 4
ib qho kev tswj hwm lossis kev tswj hwm ob npaug
Ua haujlwm siab: {0.15-0.8 (mpa), max 1.2 mpa
Khoom Siv: Cua Rov Qab
Voltage 12VDC, 24VDC, 110VAC, 220VAC
Muaj nuj nqi
| Nta |
Lub 4v200 series valve yog ib hom huab cua li qub g1 / 8, feem ntau} yog feem ntau ntawm cov 4v Tshuab .
NC 3/2 txoj kev nquag kaw; 3/2 txoj kev nquag qhib .
Kauj thiab hom: 10 ib leeg chev; 20 Ob Chav Chev; 30c nruab nrab ntawm txoj hauj lwm kaw; 30e nruab nrab ntawm txoj haujlwm tso tawm,
30P Mid-txoj hauj lwm siab, cov xim sib txawv tuaj yeem ua tau customized.
5 txoj kev pneumatic solenoid valve nruj dhau kev sim ua ntej ua zaub mov xa tuaj ua ntej xa tawm.
| Hais kom cov code |
| Cov lus qhia |
|
Tus qauv |
4V210-06 |
4V220-06 |
4V230-06 |
4V210-08 |
4V220-08 |
4V230-08 |
|
|
Solenoid Valve 12V |
|||||
|
Ua Haujlwm Nruab Nrab |
Cua |
|||||
|
Nkaus Hom |
Sab Hauv Kev Pilot Hom |
|||||
|
Chaw nyob |
5/2 chaw nres nkoj |
5/3 Chaw Nres Nkoj |
5/2 chaw nres nkoj |
5/3 Chaw Nres Nkoj |
||
|
Qhov chaw ua tau zoo nyob hauv ntu |
14.0mm2 |
12.0mm2 |
16.0 hli2 |
12.0mm2 |
||
|
Chaw nres nkoj loj |
input=tso zis=exhaust exhaust exhaust {2} g1 / 8 |
input=tso zis=g1 / 4, sab nraud capt {} g1 / 8 |
||||
|
Lubrication |
Tsis xav tau |
|||||
|
Ua Haujlwm Siab |
0} ~ 0.8mpa |
|||||
|
Pov Thawj Siab |
1.0MPA |
|||||
|
Tsev hauj lwm kub |
0} ~ 60 degree |
|||||
|
Muaj ntau ntau |
±10% |
|||||
|
Kev siv fais fab |
AC: 5.5VA DC: 4.8W |
|||||
|
Kev thaiv tsev qib |
F theem |
|||||
|
Kev Tiv Thaiv Chav Kawm |
IP65 (DIN40050505050) |
|||||
|
Kev sib txuas hom |
Plug Hom |
|||||
|
Max .} Kev khiav hauj lwm zaus |
5 ncig ua si / sec |
5 ncig ua si / sec |
5 ncig ua si / sec |
5 ncig ua si / sec |
||
|
Min .} kev ua kom tiav lub sijhawm |
0.05 sec |
|||||
|
Lub Cev Khoom |
Aluminium Alloy |
|||||
|
Feer khoom |
Leeg |
|||||
| Zuag Tawm Ib Zos |
| Rhiav Qhia |
Peb muaj lub Hoobkas thiab peb tsis tsuas yog muaj cov khoom siv ua tau dhau los, tab sis kuj tseem muaj cov chaw kuaj thiab cov hluav taws xob muaj zog {}}
Thov hu rau peb txhua lub sijhawm yog tias koj muaj teeb meem lossis cov khoom siv tsis tau, thiab hnub Sunday thiab cov lus nug uas ploj lawm, thiab hnub Sunday Tsuas yog tiv tauj nrog peb ncaj qha .} Ua tsaug!
